Box

Contrast Angular Bootstrap Box

Contrast Angular Bootstrap boxes are layout components which help to create build components for of the CSS utility needs.

Contrast Angular Bootstrap Box component can become any element from ElementType like div, span, img, video etc. depending on the value of the tag prop. The default is a div element.

Importing the Contrast Angular Bootstrap Box Module

To use the Contrast Angular Bootstrap Box component in your project you need to import BoxModule.

import {BoxModule } from 'cdbangular';

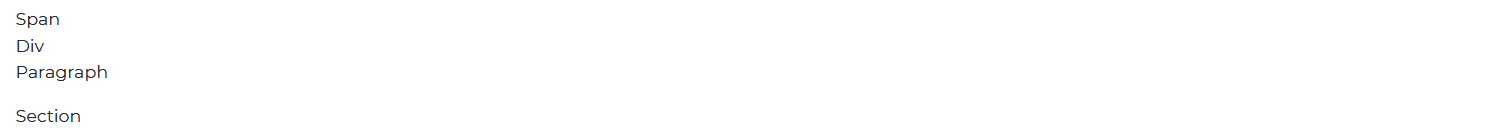

Use the tag prop to indicate the HTML element you are trying to imitate with the CDBBox component.

HTML

html

<CDBBox tag="span">
  Span
</CDBBox>
<CDBBox tag="div">
  Div
</CDBBox>
<CDBBox tag="p">
  Paragraph
</CDBBox>
<CDBBox tag="section">
  Section
</CDBBox>

Display

With Contrast Angular Bootstrap Box component, you can set any CSS display style from Bootstrap 5 like d-none, d-flex etc.

HTML

html

<CDBBox display="flex">
  Display Flex
</CDBBox>
<CDBBox display="block">
  Display Block
</CDBBox>
<CDBBox display="none">
  Dislpay None
</CDBBox>
<CDBBox display="inline">
  Display Inline
</CDBBox>

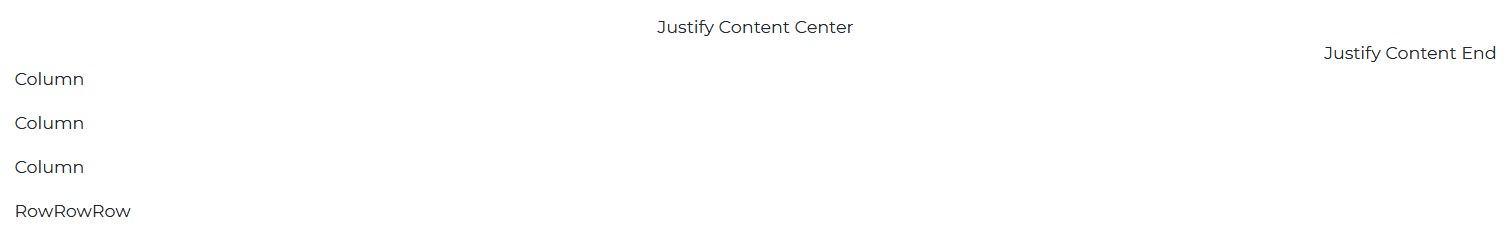

Flex

We can use CSS flexbox styles with the Contrast Angular Bootstrap Box. To do that, we set the display prop on the CDBBox component to flex.

We can use props like justifyContent, flex, alignItems, alignContent, alignSelf just like you would in regular CSS Flex.

HTML

html

<CDBBox display="flex" justifyContent="center">
  Justify Content Center
</CDBBox>
<CDBBox display="flex" justifyContent="end">
  Justify Content End
</CDBBox>
<CDBBox display="flex" flex="column">
  <CDBBox tag="p">Column</CDBBox>
  <CDBBox tag="p">Column</CDBBox>
  <CDBBox tag="p">Column</CDBBox>
</CDBBox>
<CDBBox display="flex" flex="row">
  <CDBBox tag="p">Row</CDBBox>
  <CDBBox tag="p">Row</CDBBox>
  <CDBBox tag="p">Row</CDBBox>
</CDBBox>
<CDBBox display="none">
  <CDBBox display="flex" flex="fill">
    <CDBBox tag="p">Fill</CDBBox>
  </CDBBox>
  <CDBBox display="flex" flex="row" alignItems="start">
    Align Items Start
  </CDBBox>
  <CDBBox display="flex" flex="row" alignItems="center">
    Align Items Center
  </CDBBox>
  <CDBBox display="flex" alignContent="start">
    Align Content Start
  </CDBBox>
  <CDBBox display="flex" alignContent="center">
    Align Content Center
  </CDBBox>
  <CDBBox display="flex" alignSelf="start">
    Align Self Start
  </CDBBox>
  <CDBBox display="flex" alignSelf="center">
    Align Self Center
  </CDBBox>
</CDBBox>

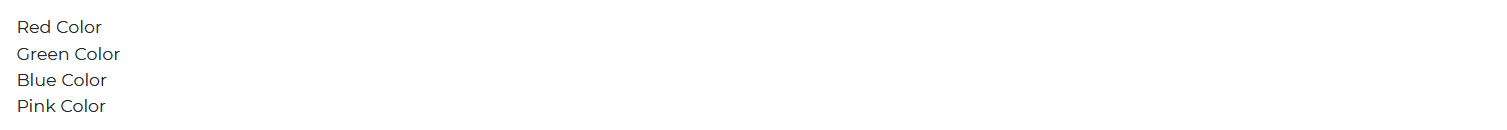

Colors

With CDBox component you can set element's text color.

HTML

html

<CDBBox color="red">
  Red Color
</CDBBox>
<CDBBox color="green">
  Green Color
</CDBBox>
<CDBBox color="blue">
  Blue Color
</CDBBox>
<CDBBox color="pink">
  Pink Color
</CDBBox>

Background Colors

Use the bg prop to set the background color of your box.

HTML

html

<CDBBox bg="success">
  Success Background
</CDBBox>
<CDBBox bg="secondary">
  Secondary Background
</CDBBox>
<CDBBox bg="danger">
  Danger Background
</CDBBox>
<CDBBox bg="warning">
  Warning Background
</CDBBox>

Contrast Angular Bootstrap Box Props

This section will build on your information about the props you get to use with the Contrast Angular Bootstrap Box component. You will find out what these props do, their default values, and how you would use them in your code.

The table below lists other prop options of the CDBBox component.

Name	Type	Description	Example
class	String	Adds custom classes	class="myClass"
color	String	Change color of text in the CDBox component. Choose one of these from CDB: `red`, `pink`, `purple`, `deep-purple`, `indigo`, `blue`, `light-blue`, `cyan`, `teal`, `green`, `light-green`, `yellow`, `amber`, `orange`, `deep-orange`, `brown`, `grey`, `blue-grey`, `cdb-color white`. You can also chose default colors from Bootstrap like: `primary`, `secondary`, `success`, `info`, `default,` `warning`, `danger`, `dark`, `muted`, `light`.	color="pink"
alignContent	String	Set align-content class to children of CDBox. Choose one of these: `start`, `end`, `center`, `between`, `stretch`, `around`.	alignContent="start"
alignItems	String	Set align-items class to children of CDBox. Choose one of these: `start`, `end`, `center`, `between`, `stretch`.	alignItems="start"
alignSelf	String	Set align-self class to children of CDBox. Choose one of these: `start`, `end`, `center`, `between`, `stretch`.	alignSelf="start"
bg	String	Sets background color of the box component. Choose one of these: `primary`, `secondary`, `success`, `danger`, `warning`, `info`, `light`, `dark`	bg="light"
display	String	Set display to element. Choose one of these: `none`, `inline`, `inline-block`, `block`, `table`, `table-row`, `table-cell`, `flex`, `inline-flex`.	display="inline"
flex	String	Set flex class to children of CDBox. Choose one of these: `row`, `column`, `row-reverse`, `column-reverse`, `wrap`, `nowrap`, `wrap-reverse`, `fill`, `grow-0`, `grow-0`, `shrink-0`, `shrink-1`, `center`.	flex="column"
justifyContent	String	Set justify-content to children od CDBox. Choose one of these: `start`, `end`, `center`, `between`, `around`.	justifyContent="start"
m	Number	With margin you can set margin top/bottom/right/left/x/y from 0 to 5.	m=5 , mt=1 , mb=4 , my=2 , mx=4
p	Number	With padding you can set padding top/bottom/right/left/x/y from 0 to 5.	p=5 , pt=1 , pb=4 , py=2 , px=4
